AIWA HS-P7 / HS-P07 / HS-P02MkII

AIWA HS-P7 / HS-P07 / HS-P02MkII

Stereo Cassette Player

A Giant Step Forward and Backward -

AIWA Presents Ultra-Compact Auto Reverse Stereos!

So compact they’ll actually slip into all but the smallest size pocket, the HS-P7 / P07 / P02MkII from AIWA set a new standard for convenience and performance in personal audio. The HS-P7 is for cassette playback only (the HS-F7 is a real stereo recorder). It weighs less than 255 grams (without batteries), measures just 23.8 mm it delivers tremendous sound performance that just won’t stop because it got auto-reverse. But that’s not all: AIWA has packed it with other top features, like Dolby* noise reduction and Metal tape compatibility. It is a truly ultra-compact model that delivers the world’s best value because it is from AIWA!

AIWA's Miniaturization Expertise Creates The World's Smallest Auto Reverse

Only AIWA’s advanced miniaturization technology could have produced the remarkable HS-P7. Weighing only 255 grams and measuring just 80mm wide, 110mm high, and only 23.8mm thick, it fits easily in nearly any pocket. In fact, the HS-P7 is so handy and compact you’ll never leave home without it. The HS-P7 has that great AIWA fidelity too, thanks to Dolby noise reduction and metal tape capability. And with the convenience of both auto-reverse and music sensor operation, the HS-P7 creates a whole new standard in ultra-thin cassette players. That’s why AIWA is a world leader in cassette audio.

The world’s smallest auto-reverse player

Thanks to auto-reverse convenience, you’ll never have to turn the tape over at the end of each side, because the HS-P7 does it for you—automatically. During play, a single touch reverses the tape direction and plays the other side. Just 23.8mm thick, this player is the result of AlWA’s long and serious dedication to quality miniaturization. With such compact convenience, the HS-P7 is your own personal companion for music enjoyment — no matter which direction you’re going!

Functional Design for Easier Operation

Push-button controls on the top of the unit enable easy mode switching while holding the HS-P7 in the palm of your hand. The same control used to open the cassette compartment also doubles as a STOP button.

Music Sensor finds the tune for you

AIWA’s Music Sensor is a convenient feature that works by detecting any non-recorded tape segment of four seconds or longer. This makes it useful in automatically locating the spaces between tunes. For example, if you don’t want to hear the tune being played now, just press the Fast Forward control; the Music Sensor will quickly search out the point where the next tune begins and return the unit to the play mode. If you want to listen to the same tune once again, press the Rewind control; the Music Sensor will quickly locate its start and automatically switch to play it back again.

Anti-rolling mechanism

For real portability, a cassette player must be "tough".

That means when you move, the mechanism should be able to absorb external bumps and turns without producing annoying changes in the tape speed, such as “wow”. To keep the operation as smooth as possible, AIWA has constructed its models with a newly designed “anti-rolling” mechanism. Whenever the position of the unit changes during operation, a pair of special flywheels absorbs the motion before it can affect the tape run. So you can take your AIWA dancing, or even jogging—it's ready for the action when you are!

Dolby* noise reduction and more for improved fidelity
•   Dolby noise reduction is the most widely-used standard for improving playback fidelity. Now you can enjoy better quality sound because the HS-P7 has Dolby noise reduction to provide low-hiss playback of Dolby-encoded tapes.

•   For extended frequency response from high-performance

 Metal and CrO2 tapes, the HS-P7 has a Normal/Metal (CrO2) tape selector which allows the proper playback equalization for all types of tape.

•   Finally, AIWA's low-noise coreless DC servo motor and quality drive system contribute to the quiet and stable tape drive for minimal wow and flutter.

AIWA HS-P7 Original Supplied Earphones (Model HM-V1/HM-V3)

Accessories & Options

AIWA HS-P7 CassetteBoy Owner's Manual

No matter where you take your music, AIWA stands behind you with its assurance of quality and service. We've also got a wide selection of high-quality optional accessories to help you keep on enjoying the music, indoors or out. Mini speakers and AC adaptors let you set up your cassette player for listening at home; battery packs give you hours of extended listening on the go. It’s another way AIWA products keep on delivering the best in sound enjoyment!

PLUS:
•  Auto-Stop mechanism
•  Pause control
•  LED power-on direction indicator switch
•  AC adaptor jack
•  Convenient reverse mode selector plus manual reverse switch
•  Extended battery life—up to 8 hours with two UM-4 (AAA) alkaline batteries
•  High-performance lightweight headphones
•  AC operation with AlWA’s optional AC-620 AC adaptor
•  Supplied with belt hanger, carrying case, and shoulder strap

From Left to Right: AIWA CassetteBoy HS-P7 Red, Blue, Yellow, Silver.
Top: HS-P02MkII Silver.

Catalogs & Brochures

AIWA Audio Video Japanese Catalog March 1984

Left: AIWA HS-P7 Japanese Retailers Catalog 1985. Right: General Catalog April 1985

Left: AIWA HS-P07 1984 Eng Brochure. Right: AIWA Headphone Stereo May 1984 Catalog

AIWA HS-F07/HS-P07 Center page 1984 English Brochure

AIWA Headphone Stereo May 1984 English World Catalog - Center page

Left: AIWA Headphone Stereo HS-P02MkII - May 1984 US Catalog.

Right: AIWA Headphone Stereo HS-P07 - May 1984 World Catalog.

Packaging & Versions

Left: AIWA HS-P02MkII Silver Boxed. Right: AIWA CassetteBoy HS-P7 Silver Boxed

AIWA CassetteBoy HS-P7 Red Boxed

This AIWA HS-F07 'Stereo Recording' box - Is similar in design to the AIWA HS-P07 'Stereo Player' Box

Other Versions & Upgrades

Basically, there are three (four altogether -inc. HS-P77) versions made:
First made in May 1984 (left), Second was made in Feb 1985 (right).

The Third version is the Equalizer version which was made in July 1984 (left) the latest is very rare and scarce.

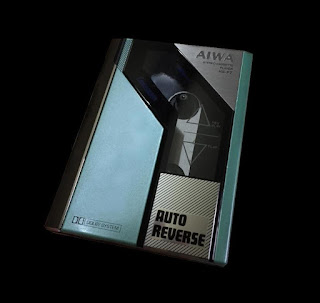

To distinguish between the two early versions, the first Version had the Auto-Reverse logo in a solid black font (HS-P7 Green) while the second version had the Auto-Reverse in a dotted font (see the HS-P7 Pink picture)

 There are small differences with this model A. The top panel of the Red Player compares to the others; 1. The Vol. Level Icon is upside down. 2. the Headphones icon is missing. 3. The Play/ Direction / Battery marking are different. 4. The • MUSIC SENSOR • Words are missing.  B. The Red & the Blue versions missing by design a screw on the top Cover.

SPECIFICATIONS:
TYPE: Ultra-compact auto reverse stereo cassette
POWER SOURCE: DC: 3V battery size ‘‘AAA" R-03 or UM-4 x 2
AC: through AC adaptor (AC-620 optional)
FREQUENCY RESPONSE: 40~16,000Hz (Metal tape)
MOTOR: Coreless DC servo motor

HEAD: Super Permalloy head (PH)
DIMENSIONS: 80 (W) x 110 (H) x 23.8 (D) mm (3-13/16'' x 4-3/8'' x 15/16'')
WEIGHT: 260g (9.2 ozs) without batteries
ACCESSORIES: Stereo Headphones/Earphones (HM-V1), carrying case, shoulder strap, and belt hanger.

COLORS: HS-P7 CassetteBoy: Silver, Red, Pink, Yellow, Green, Blue. (Japan, Far East)

HS-P07: Brown, Red, Silver. (Europe)

HS-P02MkII: Silver, Red. (US)

HS-P7 Gallery

Technical info:

<CASSETTE PLAYER SECTION> Type Y
Track type: 4 tracks, 2 channels
Tape speed: 4.8 cm/s. (1 7/8 ips)
Signal to noise ratio: 50± 4dB (DC/AC) PB (Unweighted)
Frequency response: 40~12,500Hz (NORMAL)
                                          40~16,000Hz (METAL)
Output power: 20 mW + 20 mW (EIAJ/DC)
Noise level: less than 8 mV /
Less than 9 mV (DC/AC VOL. MAX)
Distortion: Less than 2.5% (PB)
Motor: Coreless motor
Head: Super Permalloy head (PH)
Automatic stop system: Mechanical auto, FF/REW motor
Automatic stop time: less than 2 s.
Wow & flutter: 0.3% (WRMS)
Pinch roller pressure: 170 ± 10g (1.67± 0.09N)
Take-up torque 25g-cm (2.45mN .m)
FF/Rewind torque 90± g-cm (8.82± 2mN .m)
Rewind/FF time: 130± 20 s. (C-60)

Output: Headphone jack (3.5 Ø)


<HEADPHONE SECTION>
Type:  Dynamic type
Impedance:   29 ohms
Frequency response:   50~20,000 Hz
Sensitivity:   107 dB/mW
Maximum input:   100 mW

Service Manual

AIWA HS-P7 - Exploded View, unit disassembly, and belt replacement

More to come.........

BACK In Time

Back to the future

Marty Mcfly AIWA HS-P02MkII
