AIWA HS-R9 / HS-T09 / HS-T600

AIWA HS-R9 / HS-T09 / HS-T600

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Total Features for Total Playback Performance - all the features you want in one great player! celebrate 1986 with the HS-R9.

Features

AlWA's HS-R9 is the one player with nothing left out. Want TV/ AM / FM reception? A sensitive tuning section is built right in. How about auto-reverse? Yes, with your choice of three different modes. Graphic equalizer sound control? At your service with 5-band sliders right out front. Plus, the supplied RB-104 Rechargeable Battery system makes this high-tech sound enjoyment highly economical, too. If you want a headphone stereo playback with ALL the features, then you want AlWA's HS-R9.

TV/AM/FM Reception

Sensitive TV/AM/FM Stereo Reception Built into the HS-R9 is a sensitive TV/AM/FM stereo tuning section that delivers a clear and powerful reception with superior fidelity. The FM stereo/mono switch enables clearer reception of weak or distant stations. Now you can even enjoy your favorite TV broadcasting on the go; Sports Movies you name it.

5-band Graphic Equalizer Sound Control

The HS-R9's 5-band graphic equalizer enables wide ±10dB control from low bass to high treble. The five slider switches enable control of the sound centering on the 100Hz, 330Hz, 1kHz, 3.3kHz, and 10kHz frequencies.

Dolby B for Clear Playback

The HS-R9 can play tapes recorded with the popular Dolby B noise reduction system, which reduces annoying tape hiss for greater fidelity.

Rechargeable Battery System

The HS-R9 comes complete with AlWA's RB-104 Rechargeable Battery system for greater savings on batteries. It also functions as an AC adaptor to power the HS-R9 on a normal house current. A full 8-hour charge gives you two hours of playback, and batteries can be recharged over 500 times.

All this plus:

•3-Way Auto Reverse Playback

•Compatible with rechargeable (Ni-cad) batteries

•Anti-rolling tape drive mechanism for stable tape playback

•Auto-stop operation during playback; silent off in FF & Rew

•Metal (Cr02)/Normal tape type selector

•High-fidelity folding type headphones

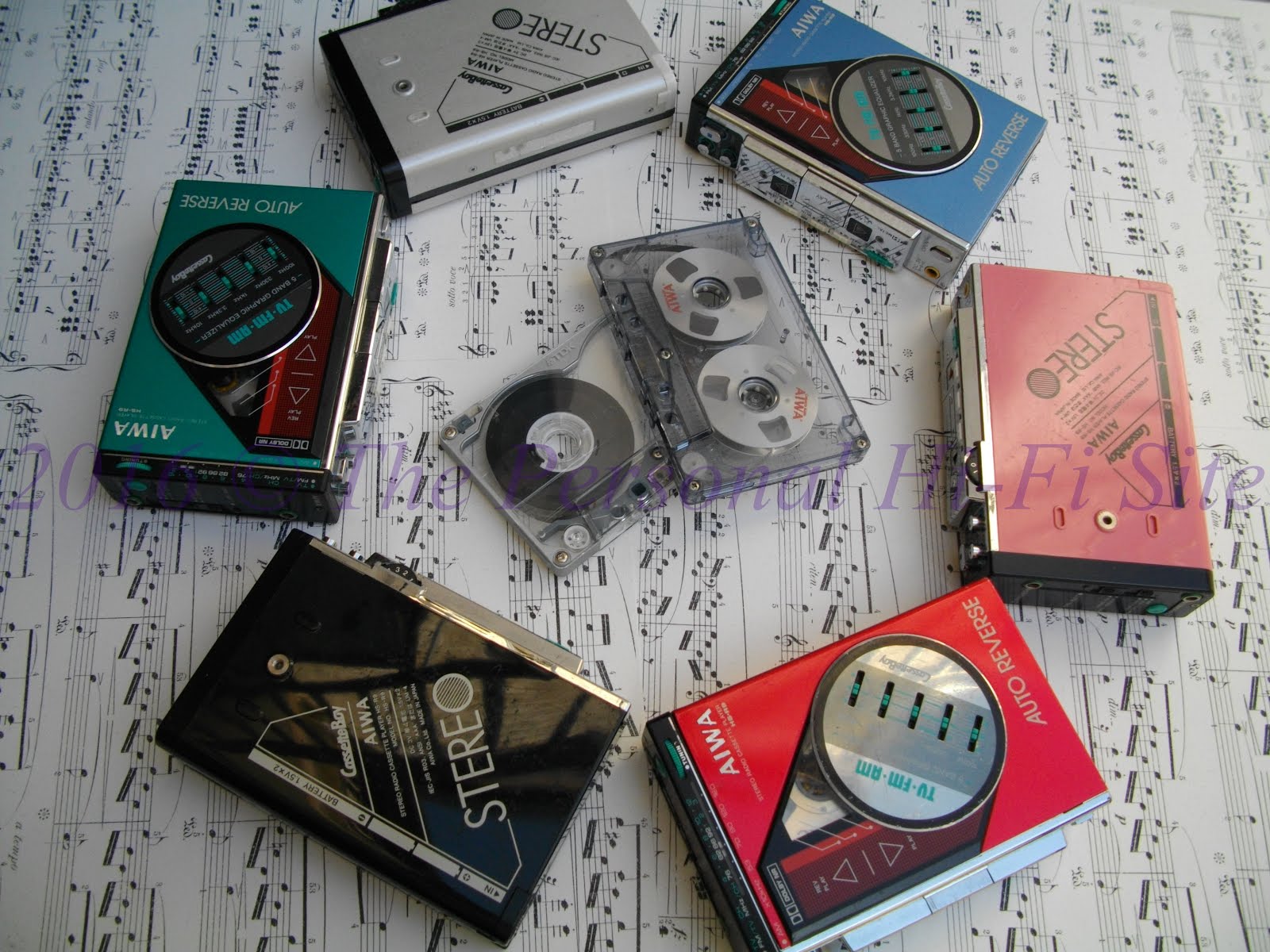

 © These images are courtesy of "Marty Mcfly" of old S2G and used with his kind permission

Catalogs

HS-T600 US catalog

AIWA HS-T09 World English catalog

AIWA'S rare Japanese Sales catalog 1986

Technical
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Specifications;

HS-R9, T09, T600

< Radio Section >

Frequency range:

TV: (VHF) 1~12 Ch.
FM: 87.5-108 MHz
AM: 530-1.605 kHz

Antenna:

TV headphone antenna
FM headphone antenna
AM ferrite bar antenna


< Tape Section >

Track arrangement:

4-track. 2-channel.

Stereo Frequency range:

40 to 12.500 Hz (NORMAL tape)
40 to 16.000 Hz (METAL tape)

Maximum output:

Japan model: 20 mW + 20 mW (EIAJ/DC)
World model: 15 mW + 15 mW

Output terminal:

Phones jack. 3.5 ø stereo mini x 1

Power source:

Battery DC 3V LR-03 (UM-4. AAA. R03) x2
Domestic AC power (using AC adapter)

Battery life:

• Using manganese batteries (R03, UM-4. AAA)
Approx. 2.5 hours (EIAJ. 1mW output, playback mode)
• Using alkaline batteries (LR-03. AM-4. AAA)
Approx. 5 hours (EIAJ. 1mW output, playback mode)

Dimensions:

74 (H) x 113 (W) x 25.9 (D) mm
(excluding any projecting parts)

Maximum dimensions:

80.2 (H) x 113.5 (W) x 27.7 (D) mm

Weight: 260 g (including batteries)

Accessories:

Carrying case x 1

Stereo headphones (HP-M11) x 1, or
Stereo earphones (HP-V9) x 1

Battery Charger RB-104/ RB-100 x 1 (only for A model)
Rechargeable Batteries x 2 (only for A model)

Please stay tuned for more on this lovely player.....
