AIWA HS-PX20

HS-PX20

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

AIWA Presents: The world's best sounding Personal Stereo

1988  AIWA's HS-PX20 represents a true high fidelity breakthrough in headphone stereo. Along with HX Amorphous Head, Direct Servo motor, Dolby B-C, Sensitive DSL-Extended, Full Logic control, Music sensor and full Auto-Reverse. On top of all, it is supplied with Hi-Fidelity Headphones to enhance your experience. This unique player is an upgraded version of the HS-PX10. AIWA's Hall of fame wouldn't be complete without the PX10 - a small player with a big sound. AIWA's engineers liked it so much; that they decided to improve it for near perfection! They represented it as the new HS-PX20.

 (    (  (( ((( d(-_-)b ))) ))  )    )

★ HX Amorphous Head.

★ Brushless Direct Drive Motor.

★ Dolby B-C Noise Reduction.

★ Dynamic Super Loudness - EX.

★ Feather-touch IC Logic controls.
★ Music Sensor.

★ 3-way auto reverse.

★ Direction auto-memory.
★ Full Auto stop.
★ Metal (CrO2) tape selector.

★ Anti-rolling mechanism.

★ Rechargeable batteries.

★ High fidelity headphones supplied.

★ Remote control.

DOLBY B-C NR
Along with Dolby B, the HS-PX20 also features the more effective Dolby C noise reduction system, found on expensive component decks, which dramatically cuts tape hiss for clear, high fidelity playback.
The system significantly reduces the high-frequency hiss. The HS-PX20, In conjunction with the B type. Dolby C has an overwhelming effect on Dolby B of about two times or more (8 dB noise Ban modified). The improvement was to eliminate the noise even below the feel of the dynamic range. The achievement is that it reproduces clear sound that had been buried in the noise until now.

DSL-EX

High fidelity playback is also enhanced by DSL-EX, a new sensitive and accurate version of AlWA's famous Dynamic Super Loudness. It's not a tone control or graphic equalizer, DSL-EX is a circuit which varies both bass and treble equalization depending on the input signal level to achieve better frequency response over a wider range. The separate LOW and HIGH sliding controls enable sensitive adjustment of DSL-EX operation to better match headphone response and suit personal listening tastes.

REMOTE CONTROL

The PX20 even has a Remote Control for a full control over all cassette functions like Play/Direction/Stop/Volume controls are on the headphone cord for greater convenience, allowing the HS-PX20 to be kept safely in a bag or pocket. The optional wired remote control unit (RC-R101) enables control of Play/Direction/Stop/FF/Rewind.

Tape playback features include twice bigger and round feather-touch push button controls, better than its predecessor HS-PX10, Also the Anti-rolling mechanism for stable playback, even when the unit is in motion.

HS-PX20 Rare Japanese ad/ brochure

Normal/Cr02/Metal tape selector.

3-Way Auto Reverse (continuous/ one-cycle/manual).

Bi-directional music sensor and full auto stop.

Remote control from the headphone cord.



The HS-PX20 is supplied with a QUICK ONE HOUR rechargeable battery PB-3 system to save time and money on batteries, delivering over 2 hours of playback from a 1-hour charge. in addition to the Standard battery compartment. The HS-PX20 can be used both with the rechargeable and regular batteries. it can even be used while recharging.





(AC Adapter/Charger AC-200 and PB-3 rechargeable battery is supplied with HS-PX20)

AIWA HS-PX20 Owners manual

This is the RARE Owners Manual for the HS-PX20 In Japanese

(we will soon get some copies in English to purchase)

~~~~~~~~~~~~~~~~~~~~~~~~~

AIWA's HX AMORPHOUS HEAD

AIWA's HS-PX10 Standard head

Amorphous Deck Head

Unlike the HS-PX10 standard head, the HS-PX20 introduces a newly developed head which promises to surpass almost every previous standard of top performance. Unlike most metals which have a uniform atomic configuration, amorphous alloy is a new non-crystalline material with nonspecific, non-directional atomic configuration. When utilized as head material, it is able to display such ideal characteristics as a high maximum magnetic flux density, outstanding signal linearity (due to lower coercivity), and minimal generation of electromagnetic noise. Add to this a remarkable hardness for extra durability, and you can understand why AIWA engineers were so excited about the potential of this new material!

PX20 HX Amorphous Head

Amorphous HX head, often found only in audiophile cassette decks, for a remarkable improvement in playback fidelity. Amorphous alloy displays exceptionally high maximum magnetic flux density, outstanding signal linearity, and minimal noise generation. Add to this a remarkable hardness for extra durability and you have one of the finest heads available. The HX head design features a peaked surface for greater sound linearity.

DIRECT SERVO DRIVE BRUSH-LESS MOTOR

Module 3" is a one phase full-wave servo motor.  With a Successful smaller spool it has far better servo motor performance and phase full-wave module 3" data. Which further stabilize the tape speed, resulting in a high output torque. Aiwa has improved the ability to rely on quality to achieve high output torque and speed stability.

Direct drive Increased efficiency. The power is not wasted in friction from the belt or gear. It Reduced noise. Being a simpler device, a direct-drive mechanism has fewer parts which could vibrate, and the overall noise emission of the system is lower. It has a longer lifetime. Having fewer moving parts also means having fewer parts prone to failure, and High torque at low rpm - Faster and precise positioning. High torque and low inertia allow faster positioning times on permanent magnet synchronous servo drives.



The HS-PX20 is a 5 Star Winner

~~~~~~~~~~~~~~~~~~~~~~~~

HS-PX20 SPECIFICATIONS:
~~~~~~~~~~~~~~~~~~~~~~~~

FREQUENCY RESPONSE:
30-12,500Hz (Normal tape)
30-14,000Hz (CrO2 tape)
30-16,000Hz (Metal tape)

DIMENSIONS: (WxHxD)

75.3 x 117.2 x 25.8 mm

3- x 4-5/8" x 1-1/16''

WEIGHT:
184g (6.5 oz) without batteries.
230g with batteries

POWER SOURCE:
DC: 2V (UM-4/R-03/AAA x 2)
AC: through AC adapter

2015 © All Rights Reserved

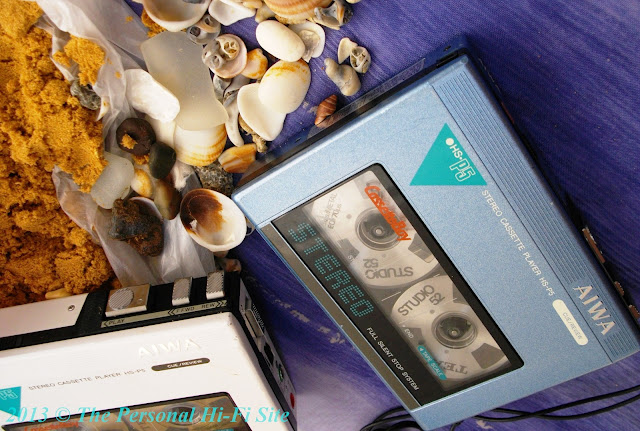

AIWA HS-P5 / HS-P05

HS-P5 / HS-P05

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

1983 AIWA does it again:

the "concealable" ultra-compact cassette player that makes

the others seem bulky by comparison!

It's HS-P05: the world's lightest most compact stereo cassette player. Weighing just 230g with batteries, it literally fits in your pocket, yet delivers beautiful sound performance in real 2-channel stereo. Best of all, you'll also have the option of adding on to your system with a wide range of high-quality AIWA accessories.

1983 Japanese Catalog

Smallest of the small

A miracle of miniaturization, the HS-P05 brings you an exciting performance from a cabinet measuring less than 2¹₂cm (1 inch) in thickness. And at only 230g (8.1 oz) it's the world's reigning featherweight champion!

Convenient operation controls

Except for STOP, controls have all been located on top of the housing, so you can easily perform tape operation modes — including fast forward, rewind etc.— with the unit in the palm of your hand.
AIWA also gives you the convenience of cue/review: that means you can advance or rewind the tape to search out the next tune (or the previous one) without having to switch from the PLAY mode.

Comfortable in-ear stereo headphones

So light you'll hardly know they're in place, the in-ear style stereo headphones (included as standard equipment) deliver amazing performance. High sensitivity drivers of samarium cobalt provide clear, dynamic sound without adding weight.

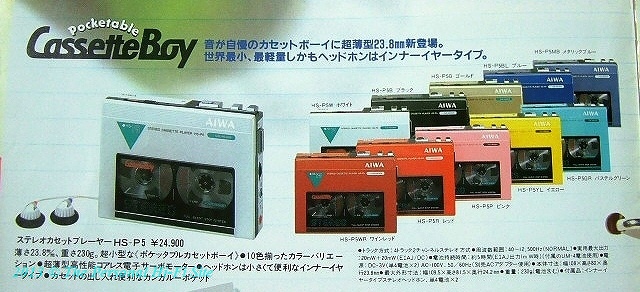

Pocketable CassetteBoy - Rare Japanese Ad.

1983 HS-P05 English 4 page catalog

1983 HS-P05  English catalog                     1983 English General catalog

Long battery life

For longer use between battery changes, the HS-P05 gives up to 12 hours playback from two Alkaline "AAA" (SUM-4) penlight batteries. Connect the optional AC adapter and you can enjoy even more economical use from AC house current.

The art of AIWA: HS-P5 Pastels style painting

A full line of exciting accessories

AIWA offers a wide range of high- quality accessories to let you enjoy your cassette player both indoors and out. Just a few of AlWA's many products are introduced on the back cover.

Plus: •AC adapter jack •Carrying strap

1984 English catalog

Technical

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

HS-P05 Specifications:

TYPE:	Ultra-compact Stereo Cassette Player
POWER SOURCE:	DC: 3V, battery size"AAA",R-03 or SUM-4x2 AC: through AC adaptor (AC-620)
TRACK:	4-track, 2-channel
TAPE SPEED:	4.8cm / sec (1-7/8 ips)
FREQUENCY RESPONSE:	Normal tape: 40~12,500Hz
HEAD:	Hard Permalloy Head
MOTOR:	Coreless DC servo motor
DIMENSIONS:	109.5(W) x 81.5(H) x 24.4(D) mm  (4-3/8* x 3-1/4' x 1 *)
WEIGHT:	230 g (8.1 oz) with batteries
