Sanyo JJ-P100

SANYO   JJ-P100

NEW  HARD  CONCEPT

A sound resort smaller than a cassette case.

High performance in a body of only 175g.

With this sound, you can surely get a sunburn on the back of your ears.

The New JJ-P100 is an advanced cassette case-size player with amazing sound.

❶ Built-in deep bass BRSS circuit.
The content of the sound is deep. A sound that is received by the whole body.
Be amazed by real powerful deep bass. 2-stage switching allows you to select your favorite level according to the song. It is a BRSS (Bass Raised Sound System) circuit that teaches you the true joy of music.

❷ Double Azimuth head for high-fidelity playback.

Pure and clear. A double azimuth head is used for the playback head to faithfully reproduce the sound recorded on the tape more. In addition, the voice coils of the stereo earphones are made of aluminum to enhance the low-frequency reproduction capability.

❸ Operate manually, Remote control with cue function.

Leave the main unit in your bag or pocket and operate it at your fingertips. It is a multi-functional remote controller with a replay function that can cue (the next one track) and a rewind function. Play Direction (reverse switching), Rewind Cue (last 1 track). Replay Stop and Volume operation.

❹ AMSS automatic song selection mechanism adopted.

A cue function lets you Skip the song you're listening to and call up your next favorite song from the beginning. With the main unit side switch, you can cue one song before or after.

Sanyo rare portable stereo catalog from Dec 1987

❺ Rapid 1-hour charge, 3.5 hours playback.

with a Rechargeable battery with increased capacity, playback time is also increased for longer. Charging takes just 1 hour. If you use a rechargeable battery and an Excel new alkaline battery (included) together, you can play for as long as 13 hours of continuous playback.

JJ-P100 Black Version with accessories

JJ-P100 World Version AC Adapter/ Charger Model: D1-C1500

Sanyo rare portable stereo catalog from April 1988

*Full Auto Off

*Direction Memory

*Full Logic Control

*FF/REW Autoplay

*Body operation lock mechanism

*Direct direction

*Dolby B Noise Reduction

*Metal tape compatible

*Double Azimuth head

Sanyo rare portable stereo catalog from Feb 1988

Sanyo rare portable stereo catalog from August 1988

Sanyo rare portable stereo catalog from Oct 1988

Sanyo rare ad with JJ-P100
 "you are what you hear"

Accessories included:

Battery box.
Headphones with Remote Control.
Rechargeable battery.
AC Adapter/Charger.
Anti-sweat Cover.

Owners Manual.
Colors:
Black, White, Silver, and Navy Blue

JJ-P100 Versions From left to right: White with Anti-Sweat case, Silver with charging promotion sticker, and Sanyo's it's - Contemporary Basic Gear Version in Navy Blue

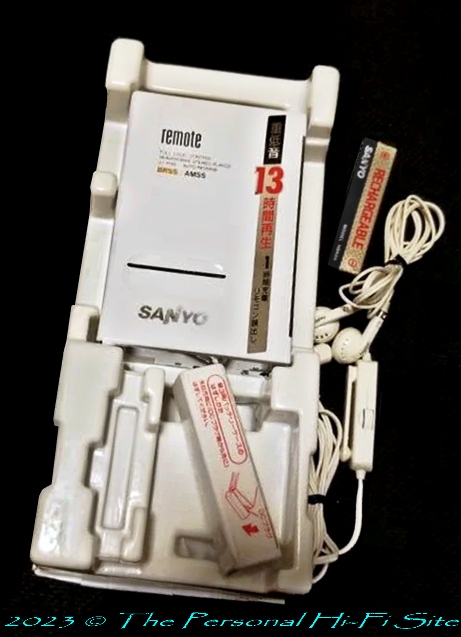

JJ-P100 Japanese Box white version

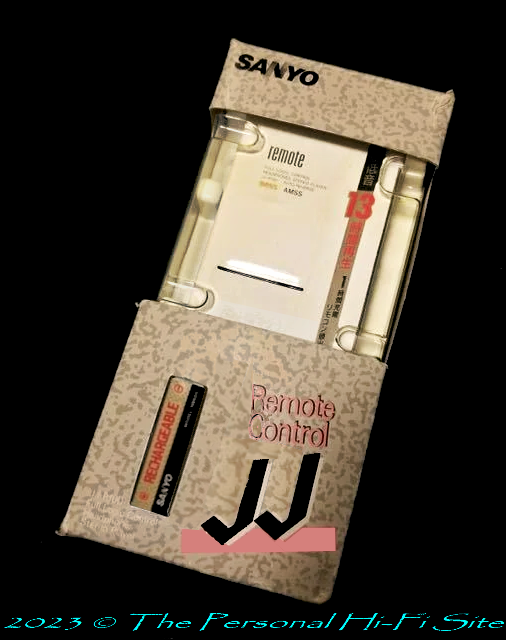

JJ-P100 World Box Version

Owners Manual

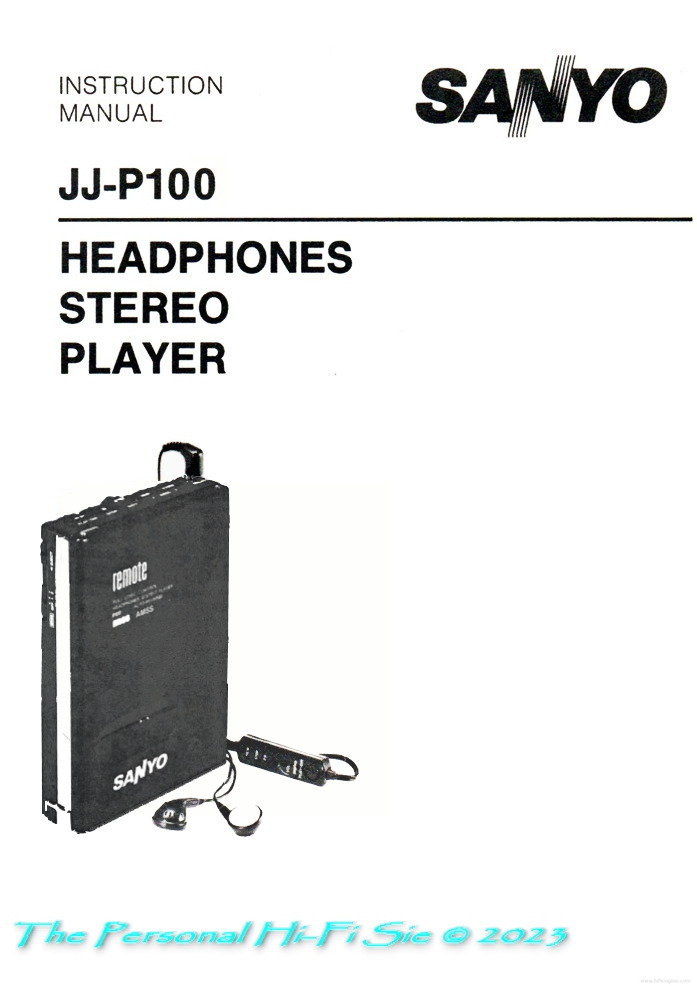

English owner's manual

JJ-P100 Specifications

Dimensions: (Max) 71.1 (W) x 104.6 (H) x  20.4 (D) mm

Weight: (With batteries) 175g

Power Source:

DC:  .........................................1.5V

Ni-Cad battery .............NB600 x 1

Output Power: .................5.0mW + 5.0mW (Max.)

Tape Speed: .....................1-7/8ips. ±3%

Fast Forward/Rewind mode: .......200sec. (with a C-60)

Wow & Flutter.................. 0.6% (WRMS)

Frequency Response: (P/B Dolby OFF).........63Hz ~ 10,000Hz

BRSS/EBSS Switch:  (at 63Hz)

1......................................................... +10dB   ±4dB

2........................................................ +20dB  ±6dB

Signal to Noise Ratio: ...............More than 43dB

Crosstalk - Track to Track: ..............More than 50dB

Channel Separation: ......................More than 30dB

Hum & Noise: (at Vol. Min.).............. -73dBs

Terminal Impedance/Headphones: ...............8 ~ 100Ω

Service Manual

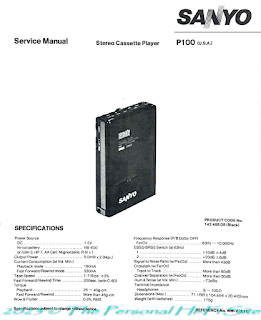

JJ-P100 Service Manual English version
